Trailer Turntable
|

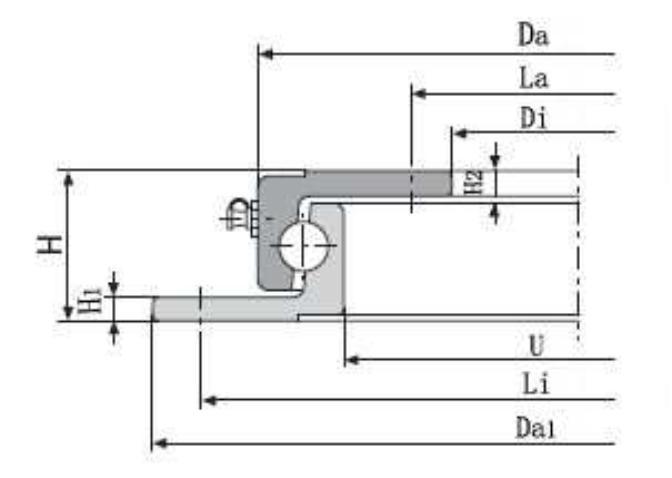

Part No. |
Permitted axial load (KN) |
Dimensions(mm) |
Weight (approx.kg) |
||||||||
|
Da1 |
Da |
U |
Di |
Li |
La |
H |
H1 |
H2 |
|||
|
EES.685.80 |
30 |
685 |
700 |
588 |
567 |
657 |
671 |
80 |
9 |
9 |
32 |
|
EES.880.80 |
50 |
880 |
895 |
783 |
762 |
852 |
866 |
80 |
9 |
9 |
43 |
|
EES.1000.80 |
60 |
1000 |
1015 |
903 |
882 |
972 |
986 |
80 |
9 |
9 |
48 |
|
EES.1090.80 |
65 |
1090 |
1105 |
993 |
972 |
1060 |
1074 |
80 |
9 |
9 |
52 |
|
EES.1000.90 |
70 |
1000 |
1011 |
886 |
859 |
960 |
974 |
90 |
10 |
10 |
63 |
|
EES.1100.90 |
80 |
1100 |
1111 |
986 |
959 |
1060 |
1074 |
90 |
10 |
10 |
65 |
|

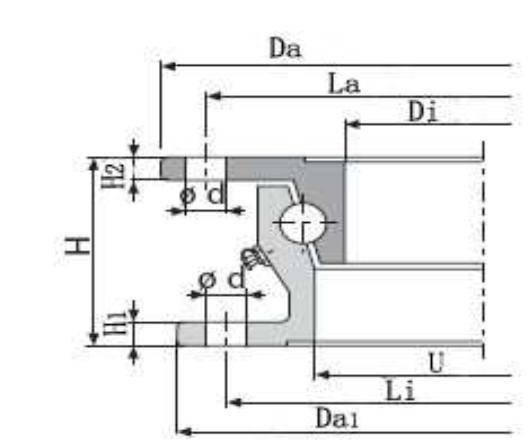

Part No. |
Permitted axial load (KN) |
Dimensions(mm) |
Weight (approx.kg) |
||||||||
|
Da1 |
Da |
U |
Di |
Li |
La |
H |
H1 |
H2 |
|||
|
EEF.400.45 |
7.5 |
400 |
342 |
292 |
230 |
375 |
260 |
45 |
8 |
8 |
11 |
|
EEF.500.45 |
9 |
500 |
442 |
392 |
330 |
475 |
360 |
45 |
8 |
8 |
15 |
|
EEF.650.45 |
15 |
650 |
592 |
542 |
480 |
625 |
510 |
45 |
8 |
8 |
20 |
|
EEF.750.45 |
18 |
750 |
692 |
642 |
580 |
725 |
610 |
45 |
8 |
8 |
23 |
|
EEF.850.45 |
25 |
850 |
792 |
742 |
680 |
825 |
710 |
45 |
8 |
8 |
27 |
|
EEF.950.45 |
30 |
950 |
892 |
842 |
780 |
925 |
810 |
45 |
8 |
8 |
30 |
|
EEF.1050.45 |
35 |
1050 |
992 |
942 |
880 |
1025 |
910 |
45 |
8 |
8 |
34 |
|
EEF.500.52 |
18 |
500 |
437 |
384 |
315 |
475 |
340 |
52 |
8 |
8 |
17 |
|
EEF.650.52 |
25 |
650 |
587 |
534 |
465 |
625 |
490 |
52 |
8 |
8 |
23 |
|
EEF.750.52 |
30 |
750 |
687 |
634 |
565 |
725 |
590 |
52 |
8 |
8 |
28 |
|
EEF.850.52 |
35 |
850 |
787 |
734 |
665 |
825 |
690 |
52 |
8 |
8 |
32 |
|
EEF.950.52 |
40 |
950 |
887 |
834 |
765 |
925 |
790 |
52 |
8 |
8 |
36 |
|
EEF.1050.52 |
45 |
1050 |
987 |
934 |
865 |
1025 |
890 |
52 |
8 |
8 |
40 |
|

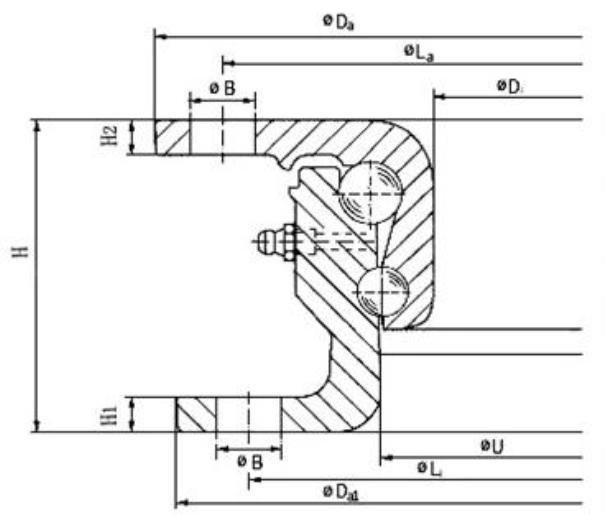

Part No. |
Permitted axial load (KN) |
Dimensions (mm) |
Weight (approx.kg) |
||||||||
|
Da1 |
Da |
U |
Di |
Li |
La |
H |
H1 |
H2 |
|||
|
EED.987.90 |
82 |
987 |
1000 |
871 |
834 |
952 |
966 |
90 |
10 |
10 |
82 |
|
EED.1095.90 |
92 |
1095 |
1108 |
979 |
942 |
1060 |
1074 |
90 |
10 |
10 |
92 |
|
EED.1195.90 |
101 |
1195 |
1208 |
1079 |
1042 |
1160 |
1174 |
90 |
10 |
10 |
101 |

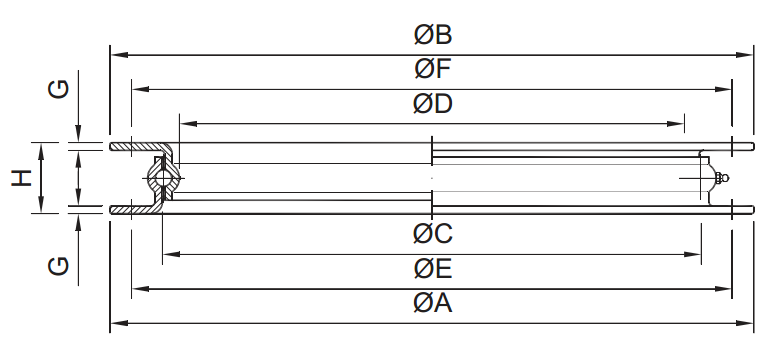

Part No. |
Permitted axial load （Ton) |
Dimensions (mm) |
Weight (approx.kg) |
||||||||
A |
B |
C |
D |
E |
F |
H |
G1 |
G2 |
|||
EEU01L030 |
0.5 |
298 |
295 |
220 |
200 |
270 |
270 |
55 |
6 |
6 |
5 |
EEU01L040 |
0.75 |
400 |
400 |
310 |
292 |
375 |
375 |
55 |
6 |
6 |
8 |
EEU01L050 |
1 |
500 |
500 |
410 |
392 |
475 |
475 |
55 |
6 |
6 |
10 |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------
Part No. |
Permitted axial load （Ton) |
Dimensions (mm) |
Weight (approx.kg) |
||||||||
A |
B |
C |
D |
E |
F |
H |
G1 |
G2 |
|||
EEU01N060 |
1.7 |
600 |
600 |
510 |
485 |
575 |
575 |
65 |
7 |
7 |
18 |
EEU01N065 |
1.7 |
650 |
650 |
568 |
543 |
* |
* |
65 |
7 |
7 |
20 |
EEU01N070 |
2.2 |
700 |
700 |
610 |
585 |
675 |
675 |
65 |
7 |
7 |
22 |
EEU01N075 |
2.2 |
750 |
750 |
668 |
640 |
* |
* |
65 |
7 |
7 |
24 |
EEU01N080 |
2.5 |
800 |
800 |
710 |
685 |
775 |
775 |
65 |
7 |
7 |
26 |
EEU01N085 |
3 |
850 |
850 |
767 |
742 |
* |
* |
65 |
7 |
7 |
28 |
EEU01N090 |
3.5 |
900 |
900 |
810 |
785 |
875 |
875 |
65 |
8 |
8 |
30 |
EEU01N095 |
3.5 |
950 |
950 |
870 |
843 |
* |
* |
65 |
8 |
8 |
31 |
EEU01N100 |
4 |
1000 |
1000 |
910 |
885 |
975 |
975 |
65 |
8 |
8 |
33 |
EEU01N105 |
4.5 |
1050 |
1050 |
960 |
935 |
1025 |
1025 |
65 |
8 |
8 |
35 |
Part No. |
Permitted axial load （Ton) |
Dimensions (mm) |
Weight (approx.kg) |
||||||||
A |
B |
C |
D |
E |
F |
H |
G1 |
G2 |
|||
EEU01P090 |
5 |
890 |
895 |
795 |
766 |
* |
* |
80 |
9 |
9 |
36 |
EEU01P100 |
6 |
1010 |
1015 |
916 |
888 |
* |
* |
80 |
9 |
9 |
42 |
EEU01P110 |
6.5 |
1100 |
1100 |
990 |
972 |
1060 |
1060 |
80 |
9 |
9 |
45 |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------
Part No. |
Permitted axial load （Ton) |
Dimensions (mm) |
Weight (approx.kg) |
||||||||
A |
B |
C |
D |
E |
F |
H |
G1 |
G2 |
|||
EEU01T100 |
8 |
1000 |
1008 |
889 |
856 |
* |
* |
90 |
11 |
11 |
60 |
EEU01T110 |
10 |
1100 |
1100 |
985 |
948 |
1060 |
1060 |
90 |
11 |
11 |
65 |
