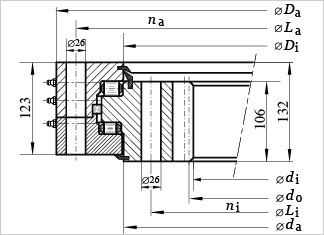

Dia.1250mm-2000mm -192 series

No.

Dimension

Fixing holes

Gear teeth

Tooth force

Basic load ratings

Weight

Static

Dynamic

Da

Di

di

da

La

Li

na

ni

do

m

z

Fz norm

Fz max

Cor

Coa

Cr

Ca

mm

mm

mm

mm

mm

mm

-

-

mm

mm

-

kN

kN

kN

kN

kN

kN

kg

134.20.1250 G3

1397

1219

1032

1218

1345

1145

36

36

1044

12

87

117

214

625

5918

424

1721

539

134.20.1400 G3

1547

1369

1162

1368

1495

1295

36

36

1176

14

84

146

269

698

6627

449

1352

630

134.20.1600 G3

1747

1569

1372

1568

1695

1495

40

40

1386

14

99

146

269

795

7572

481

1453

705

134.20.1800 G3

1947

1769

1552

1768

1895

1695

46

46

1568

16

98

175

319

892

8518

511

1549

829

134.20.2000 G3

2147

1969

1760

1968

2095

1895

54

54

1776

16

111

175

319

989

9463

540

1634

902



Equivalences
32-20 1250/2-06750
192.20.1250.990.41.1502
32-20 1400/2-06760
192.20.1400.990.41.1502
32-20 1600/2-06770
192.20.1600.990.41.1502
32-20 1800/2-06780
192.20.1800.990.41.1502
32-20 2000/2-06790
192.20.2000.990.41.1502
