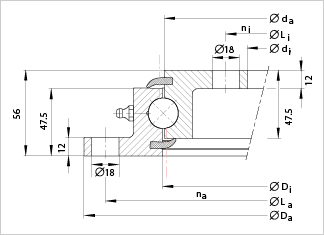

Dia.314mm-1094mm-VLU series
|
No. |
Dimension |
Fixing holes |
Gear teeth |
Tooth force |
Basic load ratings |
Weight |
||||||||||||
|
Static |
Dynamic |
|||||||||||||||||
|
Da |
Di |
di |
da |
La |
Li |
na |
ni |
do |
m |
z |
Fz norm |
Fz max |
Cor |
Coa |
Cr |
Ca |
||
|
mm |
mm |
mm |
mm |
mm |
mm |
- |
- |
mm |
mm |
- |
kN |
kN |
kN |
kN |
kN |
kN |
kg |
|
|
U.20.0314 |
418 |
315.5 |
204 |
312.5 |
390 |
232 |
8 |
12 |
/ |
/ |
/ |
/ |
/ |
89 |
208 |
140 |
140 |
19 |
|
U.20.0414 |
518 |
415.5 |
304 |
412.5 |
490 |
332 |
8 |
12 |
/ |
/ |
/ |
/ |
/ |
110 |
295 |
111 |
169 |
23.5 |
|
U.20.0544 |
648 |
545.5 |
434 |
542.5 |
620 |
462 |
10 |
14 |
/ |
/ |
/ |
/ |
/ |
145 |
385 |
123 |
188 |
31.0 |
|
U.20.0644 |
748 |
645.5 |
534 |
642.5 |
720 |
562 |
12 |
16 |
/ |
/ |
/ |
/ |
/ |
171 |
455 |
131 |
200 |
36.5 |
|
U.20.0744 |
848 |
745.5 |
634 |
742.5 |
820 |
662 |
12 |
16 |
/ |
/ |
/ |
/ |
/ |
198 |
530 |
138 |
211 |
42.5 |
|
U.20.0844 |
948 |
845.5 |
734 |
842.5 |
920 |
762 |
14 |
18 |
/ |
/ |
/ |
/ |
/ |
224 |
600 |
145 |
222 |
48.0 |
|
U.20.0944 |
1048 |
945.5 |
834 |
942.5 |
1020 |
862 |
16 |
20 |
/ |
/ |
/ |
/ |
/ |
250 |
670 |
151 |
231 |
54.0 |
|
U.20.1094 |
1198 |
1095.5 |
984 |
1092.5 |
1170 |
1012 |
16 |
20 |
/ |
/ |
/ |
/ |
/ |
290 |
770 |
160 |
244 |
62.5 |
| Equivalences | ||
| / | 90-20 0311/0-07002 | / |
| VLU200414 | 90-20 0411/0-07012 | RKS.23.0411 |
| VLU200544 | 90-20 0541/0-07022 | RKS.23.0541 |
| VLU200644 | 90-20 0641/0-07032 | RKS.23.0641 |
| VLU200744 | 90-20 0741/0-07042 | RKS.23.0741 |
| VLU200844 | 90-20 0841/0-07052 | RKS.23.0841 |
| VLU200944 | 90-20 0941/0-07062 | RKS.23.0941 |
| VLU201094 | 90-20 1091/0-07072 | RKS.23.1094 |
