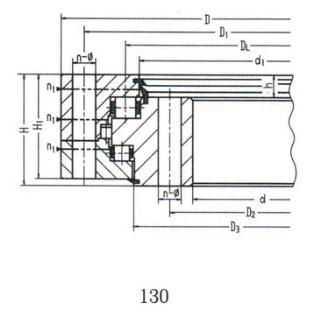

Dia.900mm-4500mm-130 series
|
Designations (Without gear) |
Boundary |
Bolt hole diameter |
Structure dimensions |
Gear parameters |
Tangential force |
Mass |
||||||||||||||||
|
De |
D |
d |
H |
D1 |
D2 |
n |
Ñ„ |
M |
n1 |
D3 |
d1 |
H1 |
h |
b |
m |
Z |
x |
k |
Normalized |
QT |
kg |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
KN |
KN |
|||||||||
|
130.32.900.** |
　 |
1064 |
736 |
182 |
1020 |
780 |
36 |
22 |
20 |
4 |
870 |
859 |
172 |
40 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
519 |
|
130.32.1000.** |
　 |
1164 |
836 |
182 |
1120 |
880 |
40 |
22 |
20 |
5 |
970 |
959 |
172 |
40 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
577 |
|
130.32.1120.** |
　 |
1284 |
956 |
182 |
1240 |
1000 |
40 |
22 |
20 |
5 |
1090 |
1079 |
172 |
40 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
650 |
|
130.40.1250.** |
　 |
1445 |
1055 |
220 |
1393 |
1107 |
45 |
26 |
24 |
5 |
1213 |
1200 |
210 |
50 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
1038 |
|
130.40.1400.** |
　 |
1595 |
1205 |
220 |
1543 |
1257 |
45 |
26 |
24 |
5 |
1363 |
1350 |
210 |
50 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
1170 |
|
130.40.1600.** |
　 |
1795 |
1405 |
220 |
1743 |
1457 |
48 |
26 |
24 |
6 |
1563 |
1550 |
210 |
50 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
1341 |
|
130.40.1800.** |
　 |
1995 |
1605 |
220 |
1943 |
1657 |
48 |
26 |
24 |
6 |
1763 |
1750 |
210 |
50 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
1518 |
|
130.45.2000.** |
　 |
2221 |
1779 |
231 |
2155 |
1845 |
60 |
33 |
30 |
6 |
1967 |
1945 |
219 |
54 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
1949 |
|
130.45.2240.** |
　 |
2461 |
2019 |
231 |
2395 |
2085 |
60 |
33 |
30 |
6 |
2207 |
2185 |
219 |
54 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
2197 |
|
130.45.2500.** |
　 |
2721 |
2279 |
231 |
2655 |
2345 |
72 |
33 |
30 |
8 |
2467 |
2445 |
219 |
54 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
2590 |
|
130.45.2800.** |
　 |
3021 |
2579 |
231 |
2955 |
2645 |
72 |
33 |
30 |
8 |
2767 |
2745 |
219 |
54 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
2932 |
|
130.50.3150.** |
　 |
3432 |
2868 |
270 |
3342 |
2958 |
72 |
45 |
42 |
8 |
3104 |
3090 |
258 |
65 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
4551 |
|
130.50.3350.** |
　 |
3632 |
3068 |
270 |
3542 |
3158 |
72 |
45 |
42 |
8 |
3303 |
3286 |
258 |
65 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
4885 |
|
130.50.3550.** |
　 |
3832 |
3268 |
270 |
3742 |
3358 |
72 |
45 |
42 |
8 |
3504 |
3490 |
258 |
65 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
5178 |
|
130.50.3800.** |
　 |
4082 |
3518 |
270 |
3992 |
3608 |
72 |
45 |
42 |
8 |
3754 |
3737 |
258 |
65 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
5478 |
|
130.50.4000.** |
　 |
4282 |
3718 |
270 |
4192 |
3808 |
80 |
45 |
42 |
8 |
3954 |
3940 |
258 |
65 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
5751 |
|
130.50.4300.** |
　 |
4582 |
4018 |
270 |
4492 |
4108 |
80 |
45 |
42 |
8 |
4254 |
4237 |
258 |
65 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
6146 |
|
130.50.4500.** |
　 |
4782 |
4218 |
270 |
4692 |
4308 |
80 |
45 |
42 |
8 |
4454 |
4440 |
258 |
65 |
　 |
　 |
　 |
　 |
　 |
　 |
　 |
6521 |
