Dia.314mm-1094mm-VLA series

Download

Single-row Ball

Crossed Roller

Double-row Ball

Three-row Roller

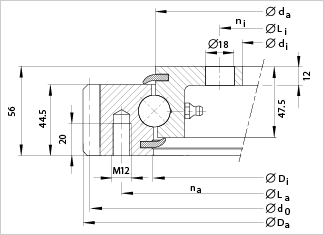

Dia.314mm-1094mm-VLA series

No.	Dimension				Fixing holes				Gear teeth			Tooth force		Basic load ratings				Weight
	Dimension				Fixing holes				Gear teeth			Tooth force		Static		Dynamic
	Da	Di	di	da	La	Li	na	ni	do	m	z	Fz norm	Fz max	Cor	Coa	Cr	Ca
	mm	mm	mm	mm	mm	mm	-	-	mm	mm	-	kN	kN	kN	kN	kN	kN	kg
E.20.0314 G1	404	315.5	204	312.5	355	232	10	12	395	5	79	11.75	23.5	89	208	140	140	23
E.20.0414 G1	503.3	415.5	304	412.5	455	332	10	12	495	5	99	15.9	23.6	248	560	111	169	29.5
E.20.0544 G1	640.3	545.5	434	542.5	585	462	14	14	630	6	105	21.3	31.5	325	740	123	188	41.5
E.20.0644 G1	742.3	645.5	534	642.5	685	562	16	16	732	6	122	21.3	31.5	385	880	131	200	48.5
E.20.0744 G1	838.1	745.5	634	742.5	785	662	18	16	828	6	138	21.3	31.5	445	1010	138	211	54.5
E.20.0844 G1	950.1	845.5	734	842.5	885	762	18	18	936	8	117	28.3	42	510	1150	145	222	65.5
E.20.0944 G1	1046.1	945.5	834	942.5	985	862	20	20	1032	8	129	28.3	42	570	1280	151	231	71.5
E.20.1094 G1	1198.1	1095.5	984	1092.5	1135	1012	22	20	1184	8	148	28.3	42	660	1490	160	244	83.5

Equivalences
/	91-20 0311/1-07102
VLA 20 0414 N	91-20 0411/1-07112
VLA 20 0544 N	91-20 0541/1-07122
VLA 20 0644 N	91-20 0641/1-07132
VLA 20 0744 N	91-20 0741/1-07142
VLA 20 0844 N	91-20 0841/1-07152
VLA 20 0944 N	91-20 0941/1-07162
VLA 20 1094 N	91-20 1091/1-07172
